Vinyl-Insulated piggy-back disconnector PBDD

Product Details

Vinyl-insulated, dual-crimp design for splitting single wires into two connections. High-purity brass contacts with tin plating for corrosion resistance. Fireproof, compact & easy-to-install. Used in automotive, industrial, home appliance & rail applications.

Product Parameters

Vinyl-Insulated piggy-back disconnector PBDD

Cable size:0.5~1.5mm²(A.W.G.22~16)   Max current:Imax=10A   Material: brass

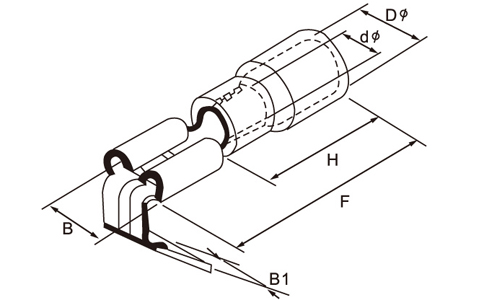

Item No. Thickness of material Dimension(mm)
(mm) B B1 H D L
PBDD1.25-250 0.8×6.35 7.4 6.3 10.6 3.8 1.7 21.0

Cable size:1.5~2.5mm²(A.W.G.16~14)   Max current:Imax=15A   Material: brass

Item No. Thickness of material Dimension(mm)
(mm) B B1 H D d L
PBDD2-250 0.8×6.35 7.7 6.3 10.6 4.3 2.3 21.0

Cable size:4.0~6.0mm²(A.W.G.12~10)   Max current:Imax=24A   Material: brass

Item No. Thickness of material Dimension(mm)
(mm) B B1 H L
PBDD5.5-250 0.8×6.35 7.7 6.3 13.5 5.7 3.4 23.5
