Vinyl fully Insulated female disconnector FDFD

Product Details

Function: DALIER's Vinyl fully Insulated female disconnector FDFD, crafted from brass, is suitable for 0.5 - 6mm² cables with max 24A current. Application: It's useful in electrical equipment like tabletop fans and small humidifiers for easy disconnection. Advantage: Its full vinyl insulation effectively prevents electric shock risks.Moreover, the FDFD disconnector boasts a robust and durable construction, ensuring long-lasting performance even in demanding environments. The precision-crafted brass material not only provides excellent conductivity but also guarantees a secure and reliable connection. Its compact design makes it an ideal choice for tight spaces within electrical appliances, facilitating efficient installation and maintenance.

Product Parameters

Vinyl fully Insulated female disconnector

Cable size:0.5~1.5mm²(A.W.G.22~16)   Max current:Imax=10A   Material: brass

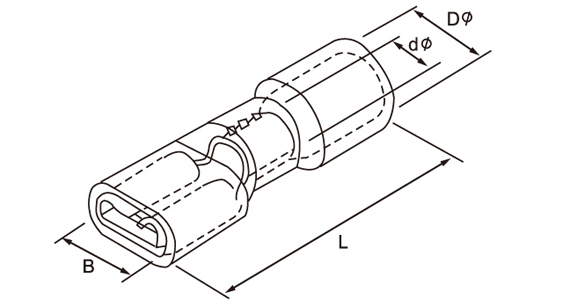

Item No. Thickness of material Dimension(mm) Color
L
FDFD1.25-187(5) 0.5×4.75 5.6 3.8 1.7 20.8 Red
FDFD1.25-187(8) 0.8×4.75 5.6 3.8 1.7 20.8
FDFD1.25-250 0.8×6.35 7.4 3.8 1.7 24.3

Cable size:1.5~2.5mm²(A.W.G.16~14)   Max current:Imax=15A   Material: brass

Item No. Thickness of material Dimension(mm) Color
L
FDFD2-187(5) 0.5×4.75 5.6 4.3 2.3 20.8 Blue
FDFD2-187(8) 0.8×4.75 5.6 4.3 2.3 20.8
FDFD2-250 0.8×6.35 7.4 4.3 2.3 24.3

Cable size:4~6mm²(A.W.G.12~10)   Max current:Imax=24A   Material: brass

Item No. Thickness of material Dimension(mm) Color
L
FDFD5.5-250 0.8×6.35 7.4 5.7 3.4 24.3 Yellow
