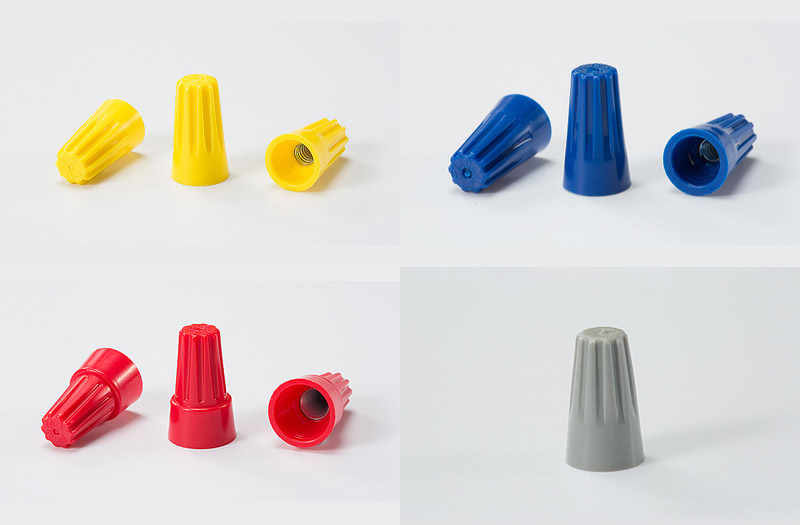

Screw on wire connector

PDF Download
Product Details

No. Item No. Cable Arrange Dimension(mm) Color B C L 1 SP1 Min 0.75×1+0.5×1 Max 1.5×2 8.5 6.7 15 Gray 2 S

Product Parameters



No. Item No. Cable Arrange Dimension(mm) Color
B C L
1 SP1 Min 0.75×1+0.5×1 Max 1.5×2 8.5 6.7 15 Gray
2 SP2 Min 0.75×3 Max 1.5×3 10.1 7.4 17.5 Blue
3 SP3 Min 0.75×3 Max 1.5×3+1×1 12.6 9.9 22.1 Orange
4 SP4 Min 0.25×1+0.75×1 Max 2.5×4+0.75×1 13.7 11 24.5 Yellow
5 SP6 Min 0.25×2 Max 6×2+4×4 16 13 26.5 Red

 Vinyl-Insulated Terminals
