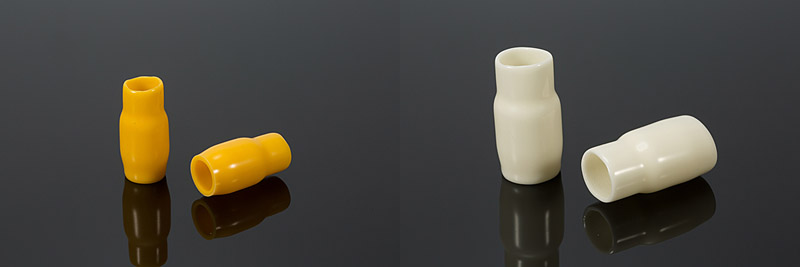

PVC insulated terminal sleeve

PDF Download
Product Details

Specifications Insulated Teleflex /Sleeve Material:PVC No. Item No. Dimension D1(mm) D2(mm) D3(mm) L(mm) F(mm) 1

Product Parameters

Specifications
Insulated Teleflex /Sleeve
Material:PVC

No. Item No. Dimension
D1(mm) D2(mm) D3(mm) L(mm) F(mm)
1 V1.25 2.8 3.3 3.1 13 7
2 V2 3.3 4.5 3.7 15 7
3 V3.5 4.2 5.7 4.1 20 8
4 V5.5 4.8 5.7 5.2 20 8
5 V8 6.2 7.2 6.2 20 9
6 V14 7.5 10 8 27 11
7 V22 10.5 12 9.5 30 15
8 V38 12.5 14 11.8 36 16.5
9 V60 15 16.8 13.5 39 19
10 V70 16 17.5 14.5 43 20
11 V80 17 19 16 47 22
12 V100 19 22 18 54 24
13 V125 21 24 20 57 25
14 V150 23 24.5 22 65 30
15 V200 27 32 24 65 30
16 V240 29 38 26.5 77 39
17 V325 29 38 29 77 40
18 V400 42 45 36 85 41
19 V500 46 48 40 88 42
20 V630 52 54 44 92 47

Vinyl-Insulated Terminals
