Insulated twin cord end terminal

Product Details

The Insulated twin cord end terminal, also known as the twin cord end terminal, is a reliable electrical component. Rated for a maximum voltage of 300V and a temperature of 105°C, it's made of durable purple copper with nylon insulation.Twin cord end terminals attach the ends of two wires and are designed to suit screw terminal blocks and connectors. When crimping on the Twin Entry Bootlace Ferrules, it prevents the screw from being damaged during the powerful connection.

Product Parameters

Insulated twin cord end terminal

Max voltage: 105°C     Ui=300V             Material: purple copper            Insulating material: Nylon

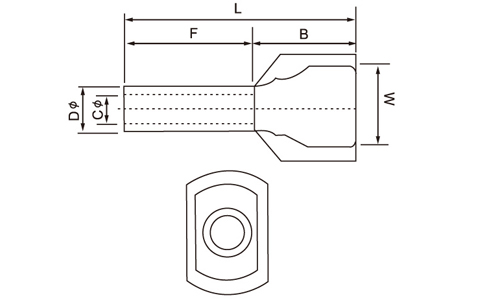

Item No. Conductor Dimension color of Insulating
(mm²) F(mm) L(mm) W(mm) B(mm) D (mm) C (mm) German French
TE0508 2×0.5 8.0  14.0  5.0  6.0  1.8  1.5  White White
TE7508 2×0.75 8.0  14.5  5.5  6.5  2.1  1.8  Blue Gray
TE7510 2×0.75 10.0  16.5  5.5  6.5  2.1  1.8
TE1008 2×1.0 8.0  14.9  5.5  6.9  2.3  2.0  Red Red
TE1010 2×1.0 10.0  16.9  5.5  6.9  2.3  2.0
TE1508 2×1.5 8.0  16.7  6.7  8.7  2.6  2.3  Black Blue
TE1512 2×1.5 12.0  20.7  6.7  8.7  2.6  2.3
TE2510 2×2.5 10.0  19.8  8.0  9.8  3.3  2.9  Gray Blue
TE2513 2×2.5 13.0  22.8  8.0  9.8  3.3  2.9
TE4012 2×4.0 12.0  21.2  8.8  9.2  4.2  3.8  Orange Gray
TE6014 2×6.0 14.0  23.5  9.5  9.5  5.3  4.9  Green Yellow
TE10-14 2×10.0 14.0  26.5  12.6  12.5  6.9  6.5  Brown Red
TE16-14 2×16.0 14.0  30.0  19.0  16.0  8.7  8.3  Ivory Blue
