Insulated cord end terminal

Product Details

Insulated cord end terminals are crucial electrical components. With a maximum temperature of 105°C and rated voltage Ui of 300V, they offer reliable performance. Made of purple copper with nylon pipe - insulating material, they are durable.Cord End Terminals are designed to terminate the end of a cable, prior to fitting screw type terminal blocks or connectors.The crimped on cord end terminal then protects the exposed wire strands from damage from the screw, which results in a stronger connection.

Product Parameters

Insulated Cord End Terminals

Umax: 105°C     Ui=300V              Material: purple copper Pipe                 Insulating material: Nylon

Item No. Dimension Cable size Color of Insulating (top)Germany      (bottom)France

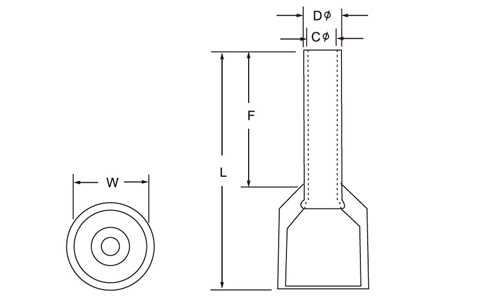

F(mm) L(mm) W(mm) D (mm) C (mm) A.W.G (mm²)
E0506 6 12 3.4  1.3  1.0  #22 0.5 Orange
E0508 8 14 White
E0510 10 16
E0512 12 18
E7506 6 12.4 3.4  1.5  1.2  #20 0.75 White
E7508 8 14.4 Bule
E7510 10 16.4
E7512 12 18.4
E1006 6 12.5 3.6  1.7  1.4  #18 1.0  Yellow
E1008 8 14.5 Red
E1010 10 16.5
E1012 12 18.5
E1508 8 15.4 4.0  2.0  1.7  #16 1.5 Red
E1510 10 17.4 Black
E1512 12 19.4
E1518 18 25.4
E2508 8 15.0  4.6  2.6  2.3  #14 2.5 Blue
E2510 10 17.0  Gray
E2512 12 19.0
E2518 18 25.0
E4009 9 17.0  5.5  3.2  2.8  #12 4.0  Gray
E4012 12 21.0  Orange
E4018 18 27.0
E6010 10 19.0  6.7  3.9  3.5  #10 6.0  Black
E6012 12 21.0  Green
E6018 18 26.0
E10-12 12 20.8  8.3  4.9  4.5  #7 10.0  Milk
E10-18 18 26.8  Brown
E16-12 12 22.2  9.4  6.2  5.8  #5 16.0  Green
E16-18 18 27.6  Milk
E25-16 16 27.6  11.7  7.9  7.5  #4 25.0  Brown
E25-22 22 33.5  Black
E35-16 16 30.0  13.0  8.7  8.3  #2 35.0  Gray
E35-25 25 39.0
E50-20 20 35.5  15.8  10.9  10.3  #1 50.0  Olive
E50-25 25 40.5
