The contactor’s main role is to manage high-power electrical circuits by activating and deactivating its ...
MoreThe JZC1-82 series contactor-type relays are used in automation and electrical control, such as in the fields of industry, power systems, and smart homes. They can be adapted to power supplies of different frequencies, amplify signals, control coil magnets, and the contacts are reliable. They can adapt to a certain range of temperature and humidity conditions as well as altitude requirements, and are resistant to impact and vibration, with a sealed design to prevent dust. The control voltage has a certain fluctuation range, and they should be installed away from adverse environments. They can be used for equipment control, system protection, and other applications.
Product Parameters
Application
The products are suitable for using in the controlling circuits up to rate voltage AC 660V or DC 660V 50Hz or 60Hz,for controlling various electro—agnetic coils to increase signal or transfer signal to relative controlling elements.
Type and meaning
Features
The relays consist of core in the form of letter "E"and a straight motion mechanism having a bridge double-breaking system. Desighed compact and sensitively,the relays are easy to manually check.They can be mounted by screws or snapped on 35mm top-hat,standard rail.This will save much time and labour costs.

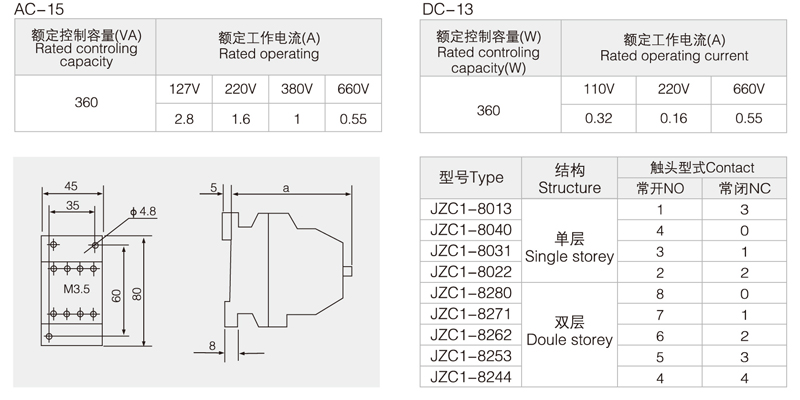

Main technical parameter
JZC1-82 series contactor type relay Thermal Relay
