Insulated wire terminal supplier

Publish Time: Author: Site Editor Visit: 1387

1. Insulated cord end terminal

Insulated wire terminal supplier_Insulated cord end terminal

Umax: 105°C

Ui=300V

Material: purple copper Pipe

Insulating material: Nylon

Technical Parameters

Item No. Dimension Cable size Color of Insulating (top)Germany      (bottom)France
  F(mm) L(mm) W(mm) D (mm) C (mm) A.W.G (mm²)
E0506 6 12 3.4  1.3  1.0  #22 0.5 Orange
E0508 8 14 White
E0510 10 16
E0512 12 18
E7506 6 12.4 3.4  1.5  1.2  #20 0.75 White
E7508 8 14.4 Bule
E7510 10 16.4
E7512 12 18.4
E1006 6 12.5 3.6  1.7  1.4  #18 1.0  Yellow
E1008 8 14.5 Red
E1010 10 16.5
E1012 12 18.5

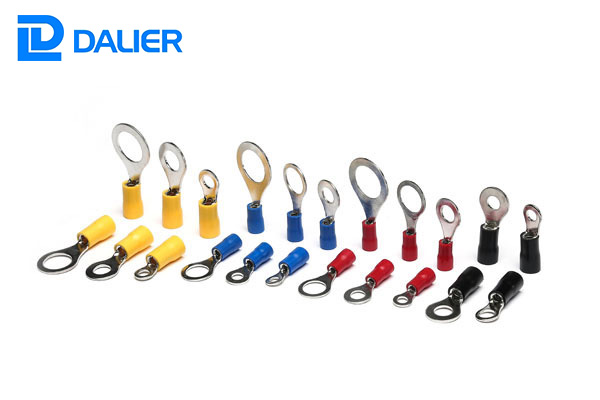

2. Ring terminal

Insulated wire terminal supplier_Ring terminal

Cable size:0.5~1.5mm²(A.W.G.22-16)

Max current:Imax=19A

Material:purple copper

Thickness:0.7mm

Technical Parameters

Item No. American Bolt number Screw dia. Dimension(mm) Color
    d2(mm) B L F H D
RV1.25-3 #4 3.2 5.7 18.7 4.95 10.6 4.3 Red
RVS1.25-3.5 #6 3.7 5.7 18.7 4.95
RVM1.25-3.5 #6 3.7 6.6 19.4 6.3
RVL1.25-3.5 #6 3.7 8 21.2 7
RVS1.25-4 #8 4.3 6.6 19.4 6.3
RVL1.25-4 #8 4.3 8 21.2 7
RVS1.25-5 #10 5.3 8 21.2 7
RVL1.25-5 #10 5.3 9.8 23 8.5
RV1.25-6 43469 6.4 11.6 26.8 11.1
RV1.25-8 43601 8.4 11.6 27.4 11.1
RV1.25-10 43532 10.5 13.6 27.4 13.9
RV1.25-12 43467 13 19.2 37.3 16.5


supplier introduction

YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.

Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.
Our company is located in Liushi town that transportation is convenient, close to the beautiful scenery of the national tourism resort - the Yan Dang mountain, and Facing the hills to the open port city - Wenzhou ; Near Wenzhou airport, railway stations, with beautiful environment and convenient transportation.

We are producing strictly reference to the technical standard advanced industrial and examined by the national electrical control and distribution equipment quality supervision testing center. It possessing first-class equipment and developing engineers, products are made that use the high purity material. The contacts series are complete, numerous in varieties, that are welcome to many clients for its excellent quality and favorable price!

Our company with holding the principle “excellent quality, exceeding credit, clients first” to serve masses of users heart and soul. We are willing to create the world-leading brand and products with clients!

TEL:+008613757750709

FAx:86-577-62766133
