MorePurpose: Termination of copper conductors. Features: High electrical conductivity and corrosion resistance.
Product Parameters
Purpose: Termination of copper conductors.
Features: High electrical conductivity and corrosion resistance. Shoe with several holes and excellent electrical contact.
Applications: Electrical panels, circuit breaker connections, motors, machines, busbars, electrical distribution boards, among others.
Material: Electrolytic copper.
Finish: Tinned

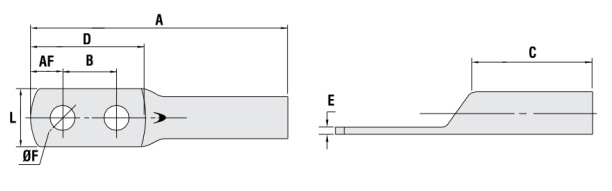

| SCREW DIA | A | AF | L | B | C | D | E | |
| TLL-10 | 5.3 | 450.2 | 5 | 10 | 14 | 16 | 25 | 1.1 |
| TLL-16 | 6.4 | 54.2 | 5.5 | 11.8 | 16 | 20 | 29 | 1.5 |
| TLL-25 | 6.4 | 59.4 | 5.8 | 13.5 | 16 | 22 | 30 | 1.5 |
| TLL-35 | 8.4 | 66 | 8 | 15.5 | 19 | 22.3 | 35.3 | 1.8 |
| TLL-50 | 8.4 | 75.5 | 8.5 | 18.5 | 22.2 | 27 | 40.5 | 2.1 |
| TLL-70 | 13.5 | 102.4 | 9.1 | 21.3 | 44.4 | 28 | 63 | 2.2 |
| TLL-95 | 13.5 | 103.5 | 9.5 | 23.8 | 44.4 | 28 | 64 | 2.3 |
| TLL-120 | 13.5 | 119 | 12.7 | 28.1 | 44.4 | 34.7 | 71 | 3 |
| TLL-150 | 13.5 | 124 | 12.3 | 30.5 | 44.4 | 38 | 71.3 | 3.2 |
| TLL-185 | 13.5 | 124.5 | 13 | 33.5 | 44.4 | 39 | 70.6 | 3.6 |
| TLL-240 | 13.5 | 136.5 | 16.8 | 38.5 | 44.4 | 41 | 75 | 3.6 |
| TLL-300 | 13.5 | 133 | 18.5 | 44.3 | 44.4 | 46 | 80 | 4.8 |
