MoreThe CJX2 - N40 AC contactor, a key component of the CJX2 - N(LC1) series, is engineered to handle circuits with a maximum rated voltage of 660V. In medium - sized manufacturing facilities, it controls the operation of various machinery motors, ensuring seamless production processes. In large - scale ventilation systems for commercial buildings, it regulates the power supply to fans. Precision - manufactured, it offers stable performance, and its corrosion - resistant design extends its lifespan even in challenging environments.
CJX2-N(LC1) series AC contactor(simplified as contactor in the following) is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting,controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, star-delta starter, with the thermal relay, it is combined into the electromagnetic starter.
Type and meaning

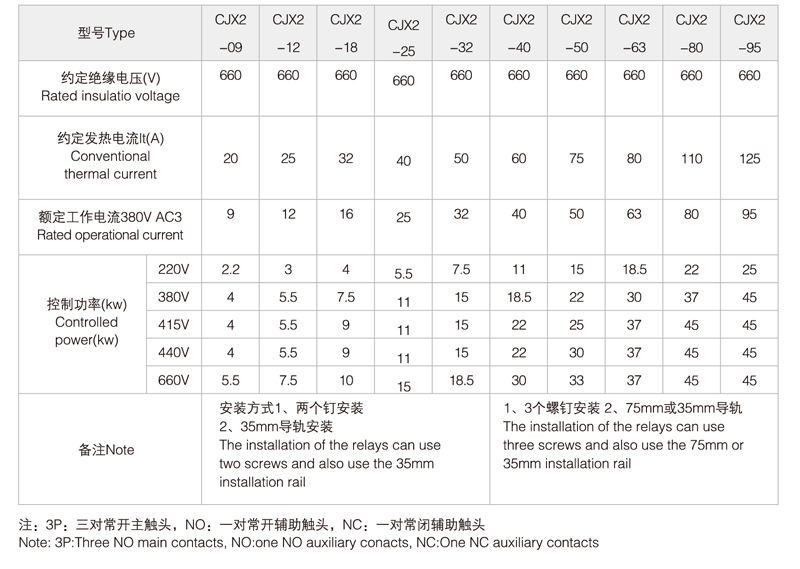

Specifications
Specification of coil
Outline mouting size
Outline size
Mouting size
CJX2-N40 AC contactor
